Rainwater harvesting Kit C - 800m2 filter, calmed inlet and siphon overflow PN: 254030

Rainwater harvesting Filter Kit C - 800m2 filter, calmed inlet and siphon overflow

• Twin Filter for Large Roof Areas
• High capacity: Handles roofs up to 800 square meters.
• Versatile installation: Suitable for pilot shafts or frost-protected walls.
• Pre-installed option: Available pre-installed for convenience.
• Efficient filtration: Two-stage cleaning system for optimal water quality.
• Self-cleaning: Continuous dirt removal for low maintenance.
• Universal fit: Compatible with 110mm (4”) and 160mm (6”) downpipes.
• Durable: Robust design with a weight of 16 kg.
• Overflow protection: Includes siphon overflow with skimming inlet and pipe for 130mm tank hole.
• Water quality: Calmed inlet prevents sediment disturbance and ensures fresh water distribution.

Delivery Cost UK Mainland:

£50 + VAT / Per Tank
Please contact us if your looking for more then one tank to get the BEST prices.

Delivery prices based on mainland UK, any products that need to be sent to UK Islands, Republic of Ireland and Scottish highlands please contact us for delivery costs.

Lead time: 2-3 Working days

See our full shipping policy here

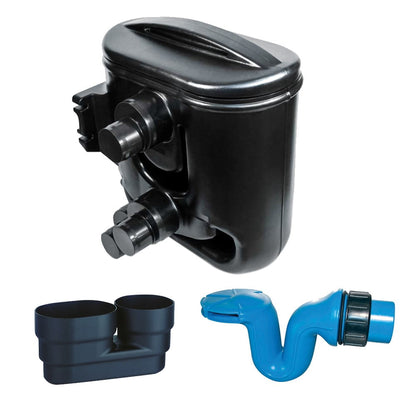

Filter Kit C

Designed for large roof areas up to 800m², this kit features a high-performance two-stage filter, siphon overflow, and calmed inlet. Rainwater initially passes through a cascade filter to remove coarse debris. Subsequently, a fine mesh (0.65mm) sieve captures remaining impurities.

Clean water is gently introduced into the tank via a calmed inlet, preventing sediment disturbance and promoting water quality. This method also oxygenates the water, inhibiting the growth of harmful bacteria. The included siphon overflow with skimming inlet removes surface contaminants, ensuring cleaner stored water.

Key benefits:

Handles extensive roof areas

Advanced two-stage filtration

Protects water quality through calm inlet and oxygenation

Removes surface impurities

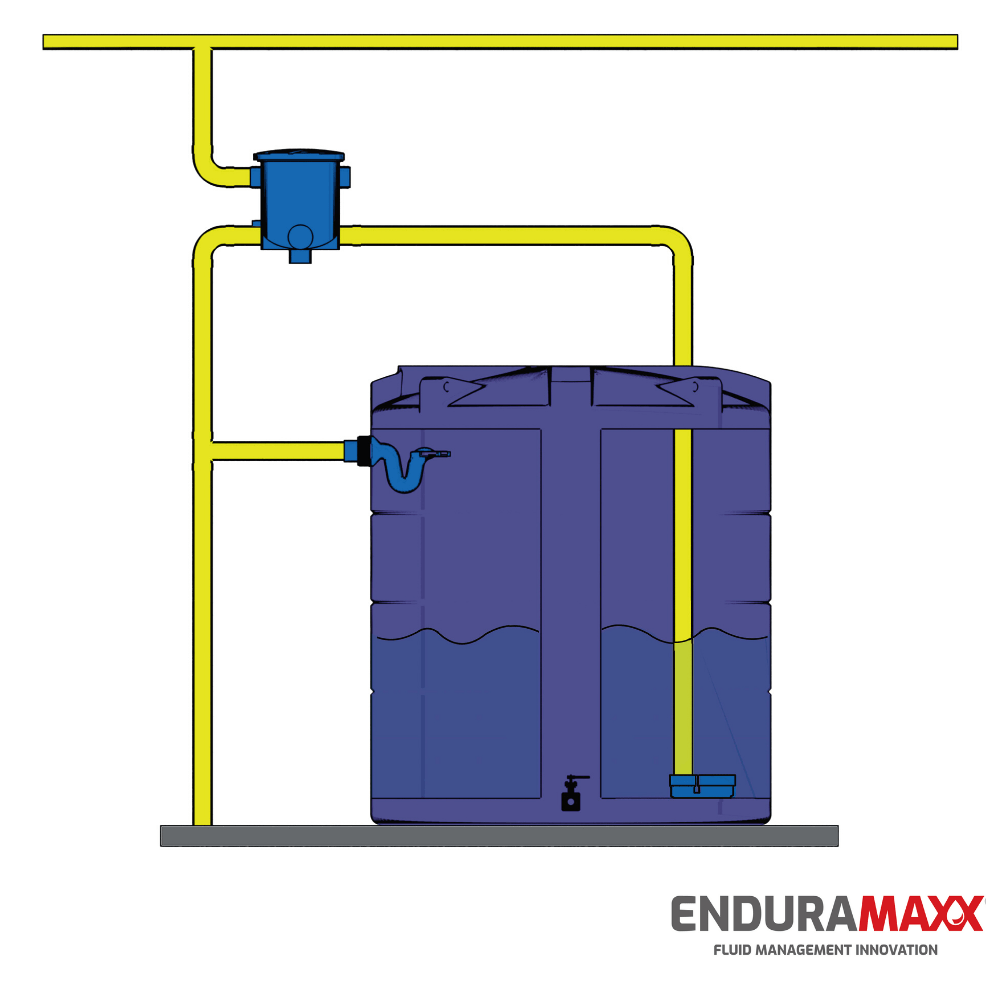

How it Works

Water is evenly dispersed across the filter's cascading layers. Larger debris is captured and directed straight to the sewer in the initial filtration stages. The pre-filtered water then passes through a fine mesh (0.65mm) secondary filter, where remaining impurities are washed away into the sewer. Clean water is subsequently channeled into the tank.

If you would like this product installed please contact our sales team to discuss
